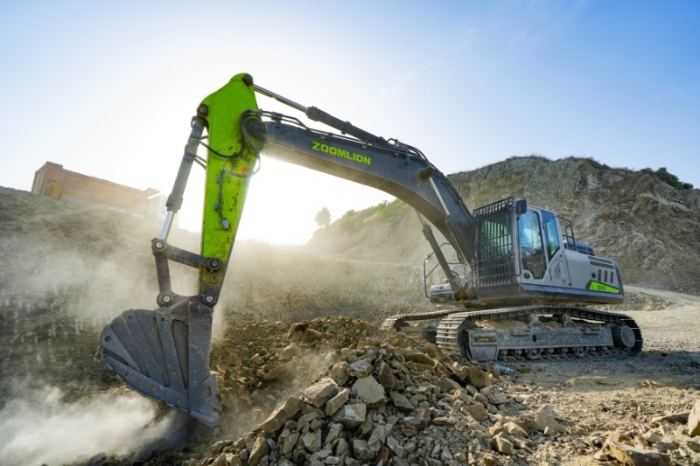

The Zoomlion ZE335G is a 33.5-tonne large crawler excavator built as a true all-rounder for medium and large-scale infrastructure, municipal and earthmoving projects. Its Cummins engine delivers strong power, a generous torque reserve and large low-speed torque for fast, responsive action and a long service life. An electronically controlled positive flow hydraulic system and three-stage idle control work together to lift fuel efficiency by more than 7.6%, while a high parts-commonality design keeps maintenance simple and uptime high.
Key Features
– Cummins engine with strong power, torque reserve and large low-speed torque
– Electronically controlled positive flow system with three-stage idle control
– Fuel efficiency improved by more than 7.6%
– Over 70% commonality of primary components and over 90% commonality of parts for easier servicing
– Optimised pipeline layout for improved reliability and maintenance
– Custom engine option for Southeast Asia markets for added durability
Basic Technical Data
– Operating weight: 33,500 kg
– Engine power: 209 kW / 2,100 rpm
– Bucket capacity (range): 1.6-1.9 m3
Digging Stats
– Max. digging radius: 10,625 mm
– Max. digging depth: 6,940 mm
– Max. dumping height: 9,740 mm
